LCD Network Cable Tester A7508
LCD Network Cable Tester A7508
Wire Tracking-- It can quickly find the required line pairs among numerous ones. It is adaptable to network cable RJ45 terminal, telephone line RJ11 terminal. It can test other metal wires via an adapter.Adjustable sensitivity.
Network Cable Collation-- It tests physical connection status of network cable, such as open circuit, short connection, miswire and reverse connection.Use the transmitter only to test the status of working telephone lines.

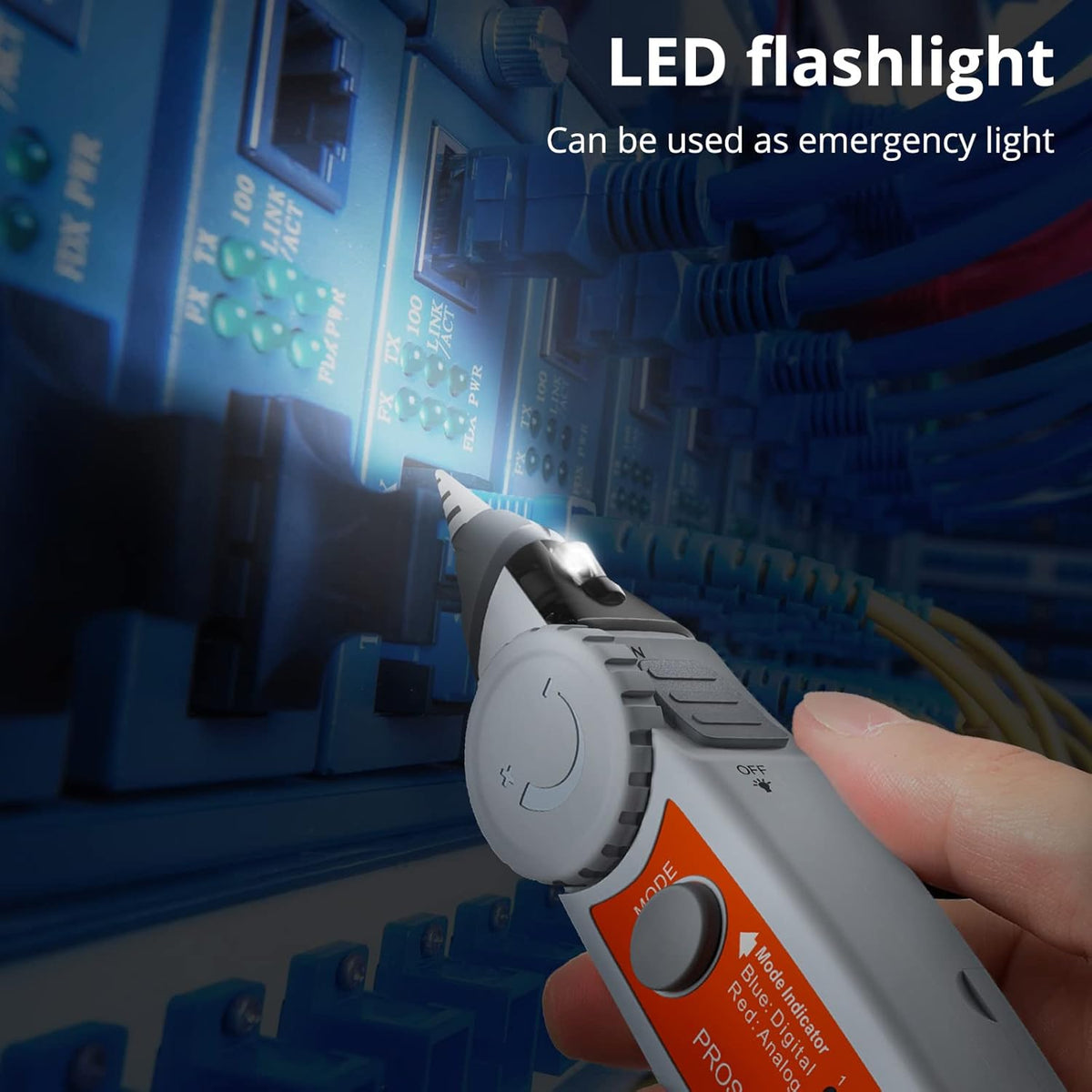

LCD Screen-- Adopt LCD intuitive display screen for you to see the data more clearly, and with three modes for you to switch freely: POE mode, digital mode and analogs mode.LED flashlight function can use it normally in a dark environment

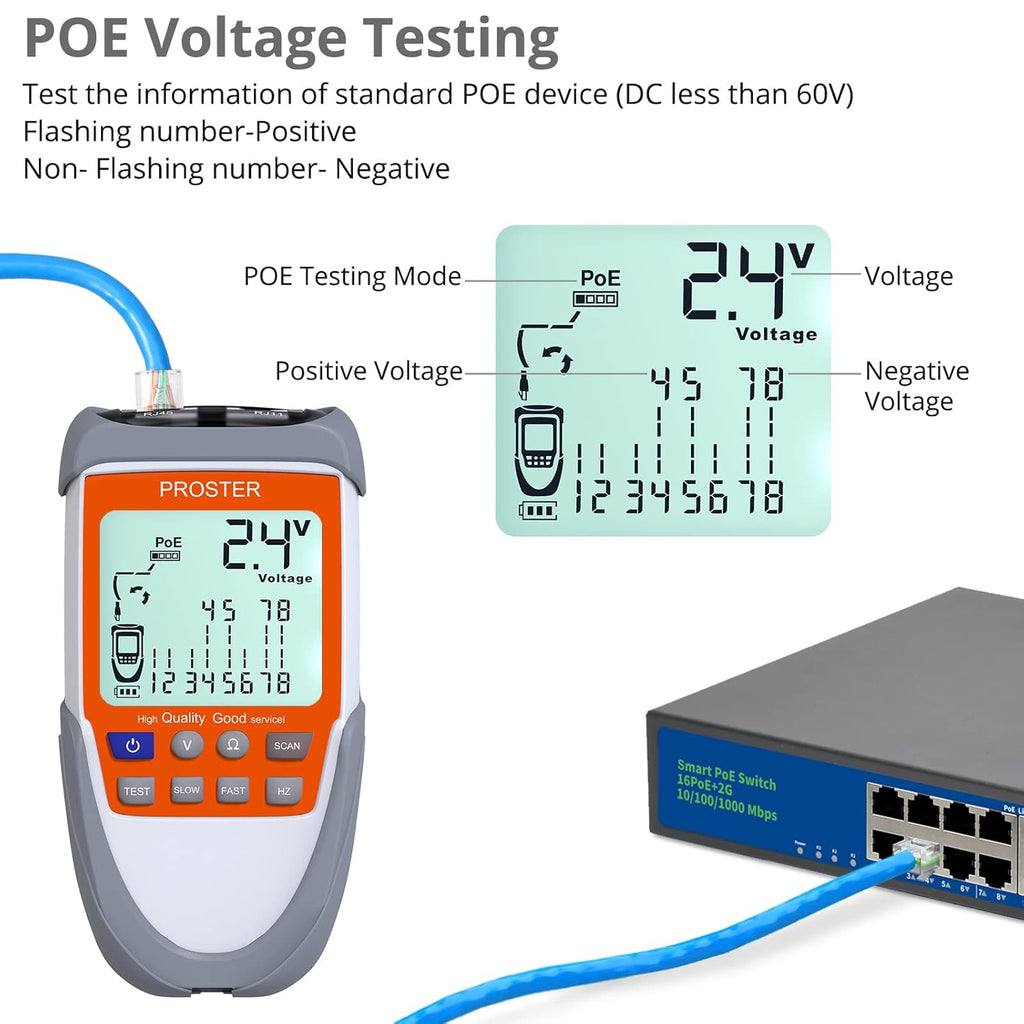

POE testing function-- This tool can be used for testing standard and non-standard POE device, it can also test POE voltage, power supplys polarity and power supplys mode.
Voltagee test function-- You can click 'V' to enter the voltage test function, which can measure the battery voltage and voltage polarity and you can press 'V' again to enter the POE test mode. You can measure the POE power supplys line and voltage.And can be hunt in the presence of voltage. (less than 60V)
This handheld portable network cable tester is a practical tool for all kinds of communication lines and engineering maintenance personnel.
It helps you quickly and efficiently find the cable you need from a large number of cables.
This product can be widely used in telephone system, computers network, video network, optical communication engineering and other metal wire line occasions.
If you need it, come and have a try, it will not let you down.
Specifications:
Material: ABS
Power:
Transmitter: 3*AA battery (INCLUDED)
Receiver: 9V (INCLUDED)
Analogue cable tracing: √
Digitalized cable tracing: √
Tracking cables with PoE support: √
Identify wire pairs & quality of wire connections: √
Battery voltage polarity checking: √
Battery Voltage measurment (for reference only): √
PoE voltage polarity checking: √
PoE Voltage measurment (for reference only): √
Split pair: √
Breakpoint checking: √
Continuity test: √
Tracing signal transmission distance: 3Km
Output signals level: ~15Vp-p
Flashlight: √
Loudness adjustable: √
Low battery indicator: √
Package size: 220 * 148 * 50mm / 8.7 * 5.8 * 2.0in
Package weight: 389g / 13.7ounce

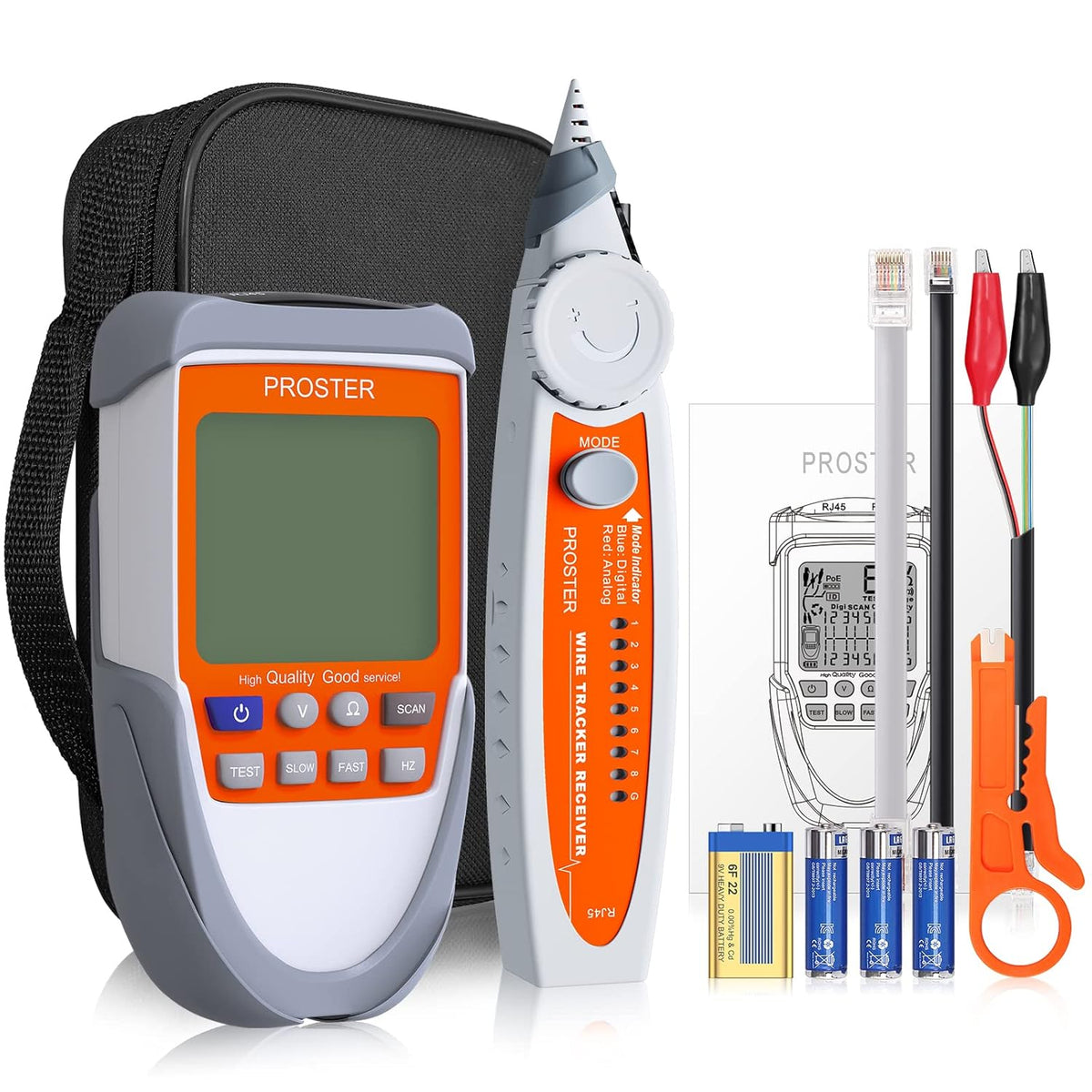

Packages included:
1 x Cable Transmitter
1 x Cable Receiver/Tracker
1 x RJ45 Cable
1 x RJ11 Cable
1 x RJ11 Cable with crocodile clamp
1 x 9V Battery(Battery Included)
3 x 1.5V AAA Batteries(Battery Included)
1 x Wire Stripping tool
1 x Instruction manual
